Bi-folds

Model Description Width Length Folded Capacity Weight Rung Space
6945-EB 45″ x 73″ ATV Bi-fold Ramp 45″ 73″ 22.75″ 1,000 lbs 23 lbs 6.5″
542-B 42″ x 68″ ATV Bi-fold Ramp 42″ 68″ 21.5″ 1,000 lbs 23 lbs 6.5″
642-B 42″ x 76″ ATV Bi-fold Ramp 42″ 76″ 21.5″ 1,000 lbs 24 lbs 6.5″
645-B 45.5″ x 76″ ATV Bi-fold Ramp 45.5″ 76″ 23″ 1,000 lbs 26 lbs 6.5″
648-B 48″ x 76″ ATV Bi-fold Ramp 48″ 76″ 24.5″ 1,000 lbs 27 lbs 6.5″
650-B 50″ x 76″ ATV Bi-fold Ramp 50″ 76″ 25.5″ 1,000 lbs 28 lbs 6.5″
745-B* 45.5″ x 88″ ATV Bi-fold Ramp 45.5″ 88″ 23″ 1,000 lbs 30 lbs 6.5″
748-B* 48″ x 88″ ATV Bi-fold Ramp 48″ 88″ 24.5″ 1,000 lbs 31 lbs 6.5″
750-B* 50″ x 88″ ATV Bi-fold Ramp 50″ 88″ 24.5″ 1,000 lbs 32 lbs 6.5″
848-B* 48″ x 97″ ATV Bi-fold Ramp 48″ 97″ 24.5″ 1,000 lbs 39 lbs 6.5″
645-BM 45.5″ x 76″ ATV Bi-fold Ramp 45.5″ 76″ 23″ 1,200 lbs 29 lbs 6.5″
648-BM 48″ x 76″ ATV Bi-fold Ramp 48″ 76″ 24.5″ 1,200 lbs 30 lbs 6.5″
745-BM* 45.5″ x 88″ ATV Bi-fold Ramp 45.5″ 88″ 23″ 1,200 lbs 33 lbs 6.5″
748-BM* 48″ x 88″ ATV Bi-fold Ramp 48″ 88″ 24.5″ 1,200 lbs 34 lbs 6.5″
645-BT 45.5″ x 76″ ATV Bi-fold Ramp 45.5″ 76″ 23″ 1,500 lbs 38 lbs 4.25″
648-BT 48″ x 76″ ATV Bi-fold Ramp 48″ 76″ 24.5″ 1,500 lbs 39 lbs 4.25″
745-BT* 45.5″ x 88″ ATV Bi-fold Ramp 45.5″ 88″ 23″ 1,500 lbs 43 lbs 4.25″
748-BT* 48″ x 88″ ATV Bi-fold Ramp 48″ 88″ 24.5″ 1,500 lbs 44 lbs 4.25″
848-L* 48″ x 97″ ATV Bi-fold Ramp 48″ 97″ 24.5″ 1,500 lbs 50 lbs 6.5″

Tri-folds

Model Description Width Length Folded Capacity Weight Rung Space
648-T 48″ x 76″ ATV Tri-fold Ramp 48″ 76″ 16.5″ 1,500 lbs 33 lbs 6.5″
654-T 54″ x 76″ ATV Tri-fold Ramp 54″ 76″ 18.5″ 1,500 lbs 35 lbs 6.5″
660-T 60″ x 76″ ATV Tri-fold Ramp 60″ 76″ 20.5″ 1,500 lbs 39 lbs 6.5″
748-T 48″ x 88″ ATV Tri-fold Ramp 48″ 88″ 16.5″ 1,500 lbs 40 lbs 6.5″
754-T* 54″ x 88″ ATV Tri-fold Ramp 54″ 88″ 18.5″ 1,500 lbs 42 lbs 6.5″
760-T* 60″ x 88″ ATV Tri-fold Ramp 60″ 88″ 20.5″ 1,500 lbs 46 lbs 6.5″

Note: BT Ramps may be used for certain tractor models and golf carts.
Note: All weight ratings based on ramps in at least 30° position.
Other special ramps may be available, call with specifications.
* Not shipped via UPS or Fed Ex. Shipped via SpeeDee in MN, WI, IA, SD, ND.

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish
  • Truck ATV utility ramps for sale
  • Lightweight aluminum loading ramps for sale
  • Lightweight ATV loading ramps for sale
  • Heavy duty motorcycle ramps for sale

Tri-folds

Model Description Width Length Folded Capacity Weight Rung Space
762-UTV* 62″ x 88″ UTV Tri-fold Ramp 62″ 88″ 20.5″ 2,500 lbs 55 lbs 6.5″
764-UTV* 64″ x 88″ UTV Tri-fold Ramp 64″ 88″ 21″ 2,500 lbs 62 lbs 6.5″

Note: All weight ratings based on ramps in at least 30° position.
Other special ramps may be available, call with specifications.
* Not shipped via UPS or Fed Ex. Shipped via SpeeDee in MN, WI, IA, SD, ND.

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish

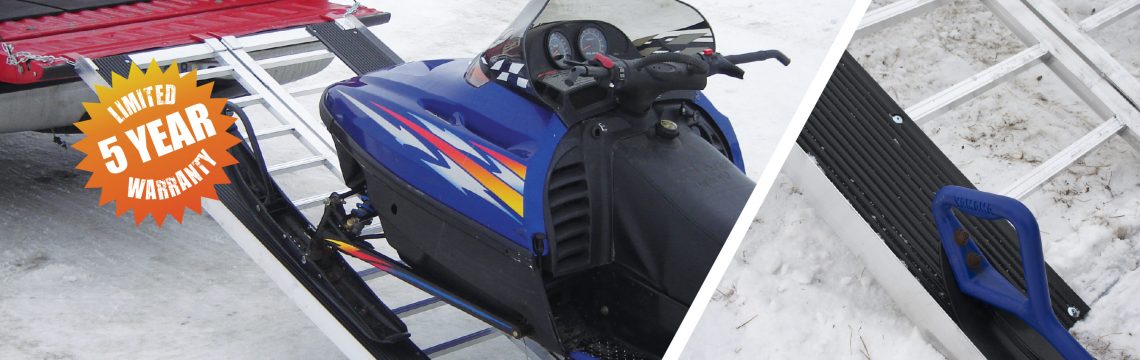

Heavy duty aluminum snowmobile ramps

Bi-folds

Model Description Width Length Folded Capacity Weight Rung Space
648-BS 48″ x 72″ Snowmobile Bi-fold Ramp 48″ 72″ 24.5″ 1,000 lbs 39 lbs 6.5″
650-BS 50″ x 72″ Snowmobile Bi-fold Ramp 50″ 72″ 25.5″ 1,000 lbs 40 lbs 6.5″
748-BS* 48″ x 88″ Snowmobile Bi-fold Ramp 48″ 88″ 24.5″ 1,000 lbs 48 lbs 6.5″
750-BS* 50″ x 88″ Snowmobile Bi-fold Ramp 50″ 88″ 25.5″ 1,000 lbs 49 lbs 6.5″

Note: Includes 8″ polyethylene EZ Guide strips for carbide skis – 1.75″ guide rail centers snowmobile for ease of loading and unloading.

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish

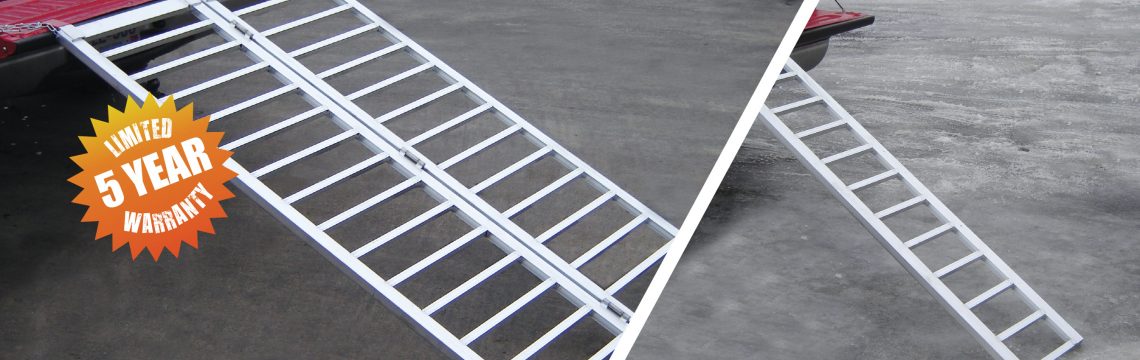

Heavy duty motorcycle ramps for sale

Straight

Model Description Width Length Folded Capacity Weight Rung Space
7814-S ea 14″ x 76″ Motorcycle Straight Ramp 14″ 76″ Single 900 lbs 14 lbs 5.25″
9014-S pr 14″ x 88″ Motorcycle Straight Ramp 14″ 88″ Single 1,500 lbs 31 lbs 5.25″

Note: Models are single straight ramps, 7814-S sold as each and 9014-S sold in pairs.
Note: All weight ratings based on ramps in at least 30° position.
Other special ramps may be available, call with specifications.
* Not shipped via UPS or Fed Ex. Shipped via SpeeDee in MN, WI, IA,

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish

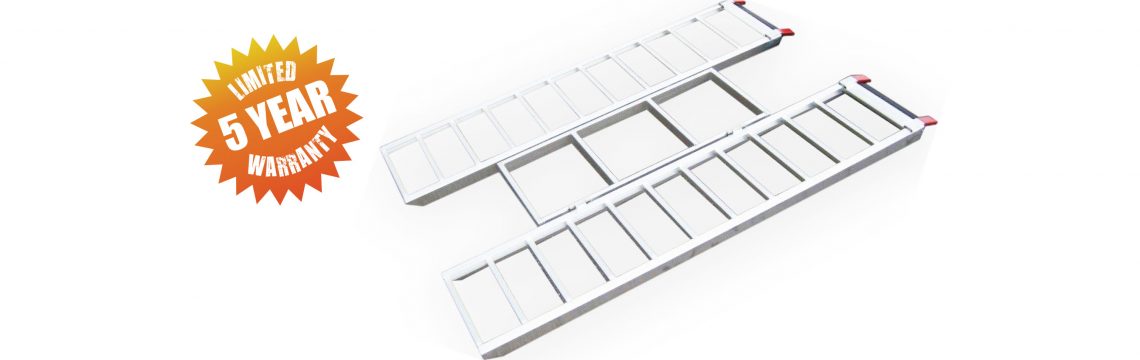

Aluminum utility ramps for sale

Straight (sold in pairs)

Model Description Width Length Folded Capacity Weight Rung Space
6014 pr 15″ x 60″ Car / Truck Straight Ramp 15″ 60″ Single 4,500 lbs 60 lbs 4″

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish
  • Truck ATV utility ramps for sale
  • ATV utility ramps for sale
  • ATV motorcycle snowmobile trailer ramps for sale

Arched (sold in pairs)

Model Description Width Length Folded Capacity Weight Rung Space
7814 14″ x 76″ Arched Ramp 14″ 76″ Single 1,500 lbs 29 lbs 3.5″
7814-X 14″ x 76″ HD Arched Ramp 14″ 76″ Single 2,000 lbs 35 lbs 3.5″
9014 14″ x 88″ Arched Ramp 14″ 88″ Single 1,500 lbs 34 lbs 3.5″
9014-X 14″ x 88″ HD Arched Ramp 14″ 88″ Single 2,000 lbs 40 lbs 3.5″

Folding Arched (sold in pairs)

Model Description Width Length Folded Capacity Weight Rung Space
7814-F 14″ x 76″ Folding Arched Ramp 14″ 76″ Single 1,500 lbs 40 lbs 5.25″
9014-F 14″ x 88″ Folding Arched Ramp 14″ 88″ Single 1,500 lbs 48 lbs 5.25″

Note: Models are single curved ramps, sold in pairs.
Note: All weight ratings based on ramps in at least 30° position.
Other special ramps may be available, call with specifications.

Features

  • Weight Distribution System
  • Safety Chains
  • Rubber Coated Support Arms
  • All Aluminum Construction
  • Bear Track Fit and Finish
